Fiberglass skeleton of the custom-made dome
I started to build small-scalle dome with fiberglass pole segments (those used for tents), inspired by some models I've seen made with canes, dome tents and information from Paul Bourke's paper [1]. I also looked at geodesic dome constructions but they seem less portable. My plan is to construct something which weights around 10 kilos in total (very light for a dome) and which could be easily transported and will fit in my studio for testing purposes.
I need the following components:
- Dome (in construction)
- Video Projector (using for now a Mitsubishi LVP-S50, which I got years back in Akihabara).
- 180 degree spherical mirror
- MacbookPro rnuning Blender 2.49
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjTWM4MtEIDtFeEJNxnx298c5emfH8Uqllep_Dp1y9_hSVp4JoW8Faxj58S-D9BEKRgTjMK4V45atKAahV0YgJu6yh0Swqo4-ZyK58AME_gldITMlW4moTFHE8-GwswM3qtPe8vn4yeTgg/s400/section.jpg)

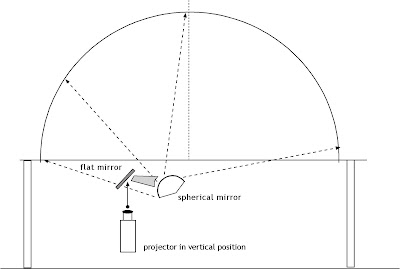

Above the schematics inspired by Burke's implementation at the Laupheim dome, Germany (a 10 meter dome)
First I purchased a couple of camping tents which provided me with a total of 34 fiberglass segments. I still need another 75, according to my calculations.
The model will have a diameter of 263 cm and a height of 165 cm. Below some of my calculations on an excel marksheet:
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjSgMVdH78TxMcPm1UaVyzZI1i_yU_fVO5laSZPjcnibKI1A0GwUYPN8Dm_I9sif-pXLwjWL2zuzbortAOOmKmsM9ltinZlgxk2GrSvl4oIy586ASdDQRfqHdUV78Pq_mtOo_sr8D7f2BY/s400/calculos.jpg)
Below some specs of the spherical security mirror I need:
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhzaQ1_AFANYWroWgR0ThT25irJKlVarLJq2n4PYju3wFk_M3gRiD_-6IUL2Ejhk7u7jGLOyBbt7gFUZ4Koua3mxvdhBaI137hSM0zpk2O22MkCJHRHQESUYvJuCLGtYXTKumXRnkHZm00/s400/mirror_de.jpg)
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjlHIA6AfoAs5jR7LtiXEB1lOGvJlYc9J617lSVwhnHXZW7dudmIZsoHIqgfGSvRGUcfvZe_9HO1IMgooimT86UuJkkRJl1V1JMb5uaQRU-TgnutyZY0i4bPKXJ86MA3zCHUh4s5GNfRbo/s400/beamer.jpg)
Mitsubishi LVP-S50
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhDvZoQiGV3FNFHOGZlFQ2WJuGQS-JgGBYBO7qrNCAUDZbvYtOvNXxdAot5Xre1moPS7aY_Xrnxl2wxJ7IUb_hjXt9Vn92rU-MvOc-X3BPNlQNJ16x1-xjBTe4FDs1buIB90b36PJw0IgA/s400/P1010039a.jpg)
Suspended from the ceiling (test)
[1] 'Using a spherical mirror for projection into immersive environments'. Paul Bourke; Swinburne University, Melbourne, Vic 3122, Australia
